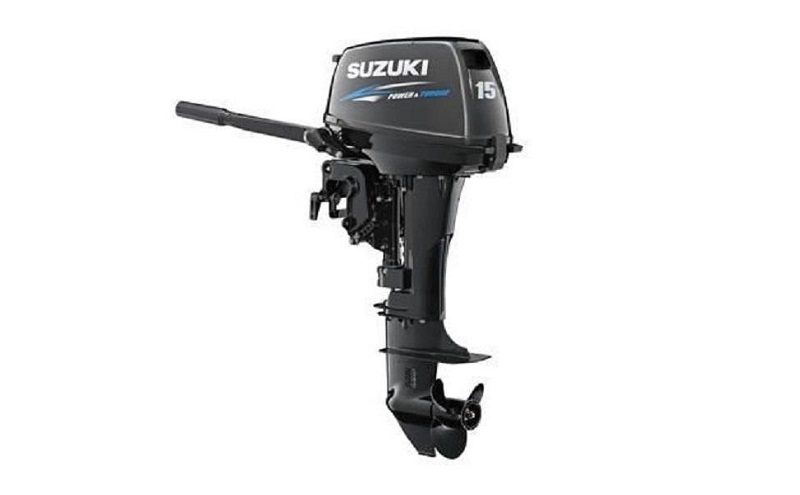

DT15AL
SUZUKI 2 strokes motors , true working machines, offer an unparalleled price/performance ratio and can withstand the most extreme operating conditions. These engines are perfect for equipping traditional fishing canoes. Suzuki's advanced technology provides fast starts, exceptional power, excellent fuel economy and smooth, quiet operation even at idle.
Technical Specifications
MOTOR
- Engine Type : In-line 2
- Start-up : Manual
- Max.Prop Shaft Horsepower (Kw) :
DIMENSIONS
- Engine transom height (mm) : 508
- Dry weight with propeller (kg) : 39,5
WARRANTY
- Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
- Retail Network : Suzuki
Models available
DT15AL
DT15AL DT15AL
Technical Specifications
MOTOR |
|
| Architecture | |
| Bore x Stroke (mm) | 59 x 52 |
| Displacement (cc) | 284 |
| Engine Type | In-line 2 |
| Fuel | Fuel and Oil |
| Fuel consumption (L/h-tr/min) | |
| Full throttle operating range (tr/min) | 4800-5600 |
| Gear Ratio | 1.92:1 |
| Ignition System | SUZUKI PEI |
| Lubrication system | |
| Max.Prop Shaft Horsepower (Kw) | |
| Maximum Power (Kw) | 11(15) |
| Number of Displacement | |
| Power system | |
| Reduction ratio | |
| Reverse direction | Front/Neutral/Rear |
| Start-up | Manual |
| Steering Control | Tiller Handle |
| Trim method (positions) | Manual |
 MORE |
|
| Alternator | 12V/80W |
| Control | |
| Propeller Rotation | Clockwise |
DIMENSIONS |
|
| Dry weight with propeller (kg) | 39,5 |
| Engine Oil Capacity (L) | 25 |
| Engine transom height (mm) | 508 |
| Oil capacity (L) | 1 |
Equipments
REGULAR PROPELLER (3 blades) |
|
| Diameter | 9 1/4 |
| Material | ALUMINUM |
Gallery
Non-contractual images
